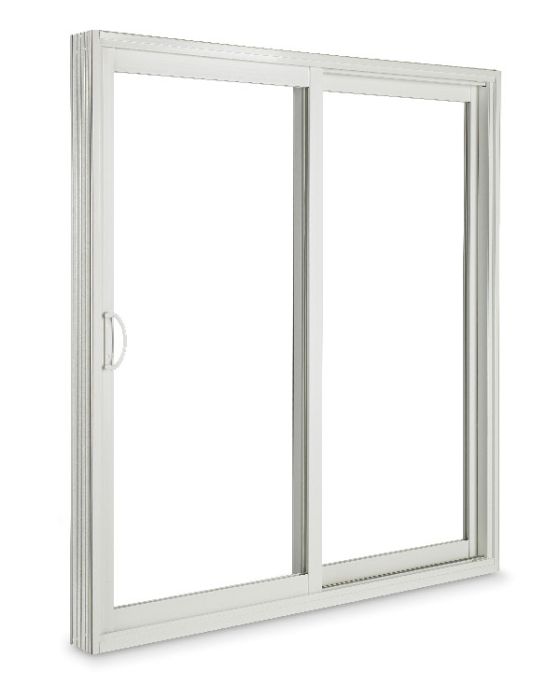

Victorian

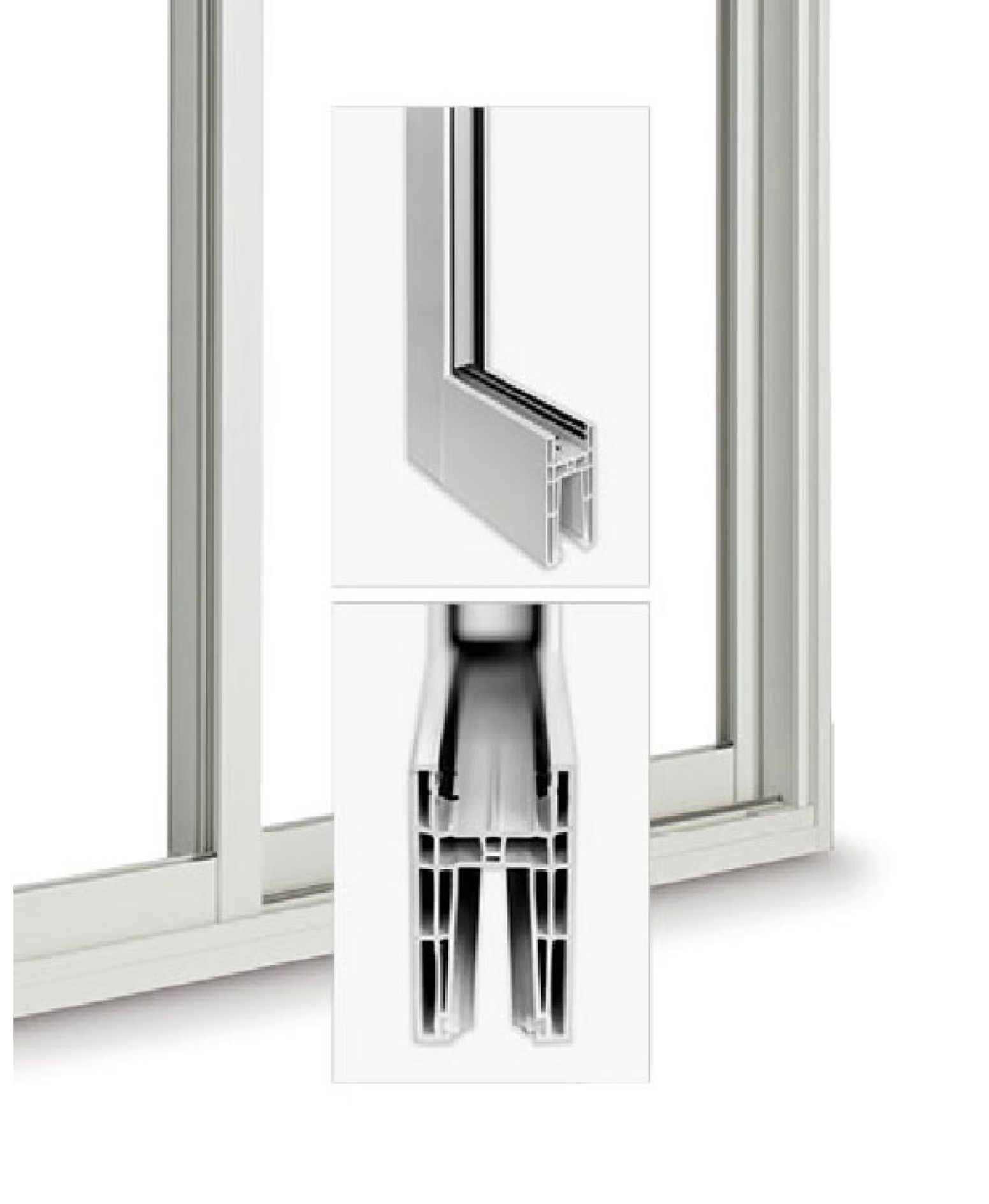

The Victorian patio door is made from high quality resin and is ideal for new construction. The multi-chambered, all-vinyl frame is easy to install and designed to withstand high winds. The door offers a wide range of security, colour and finishing choices.

As seen on

Our locations in Alberta

As seen on

British Columbia

Saskatchewan

Specifications

Insulated glass: Double Low-E face 3
Energy rating: RE 34
Water resistance: 400 PA
We conducted tests using a door measuring 71'' by 81''.
Air infiltration resistance: A3
Global: PG-R45

Dimensions

We offer a range of sizes, including custom dimensions, for patio doors and outdoor French doors. The exterior view displays the available sizes and dimensions.
X = Opening panel O = Fixed panel

59 ½" x 79 ½"
58 ½" x 81"
59 ½" x 95 ½"

71 ½" x 79 ½"
70 ½" x 81"
71 ½" x 95 ½"

7' & 8'

82 ½" × 81"
83 ½" × 95 ½"
95 ½" × 79 ½"
94 ½" × 81"
95 ½" × 95 ½"

9' & 12'

105" x 79 ½"
103 7/16" x 81"
139 ⅜" × 81"

59' & 12'

107 3/16" × 79 ½" (OXO)
107 3/8" × 79 ½" (XOO ou OOX )
105 5/8" × 81" (OXO)
105 13/16" × 81" (XOO ou OOX )
141 5/8" × 81" ( OXO )
141 7/8" × 81" ( XOO ou OOX )

10' & 12'

116 7/16" x 79 ½"
114 ½" x 81"
116 7/16" × 95 ½"
140 1/2" × 79 ½"
138 7/16" x 81"
140 1/2" × 95 ½"

Frame depth: 5¾'' ou 7¼''

Flat/Rectangular 2" dividers,
1 × 3 squares.

Flat/Rectangular 5/8" or 1" hanging grills, 3 × 1 squares.

Sidelites and Transoms

We offer a diverse array of sidelite and transom combinations in bespoke dimensions. Our patio door sidelites, constructed entirely of PVC, exhibit exceptional durability and function. Add sidelites and transoms to your French backyard doors for additional light and elegance.
