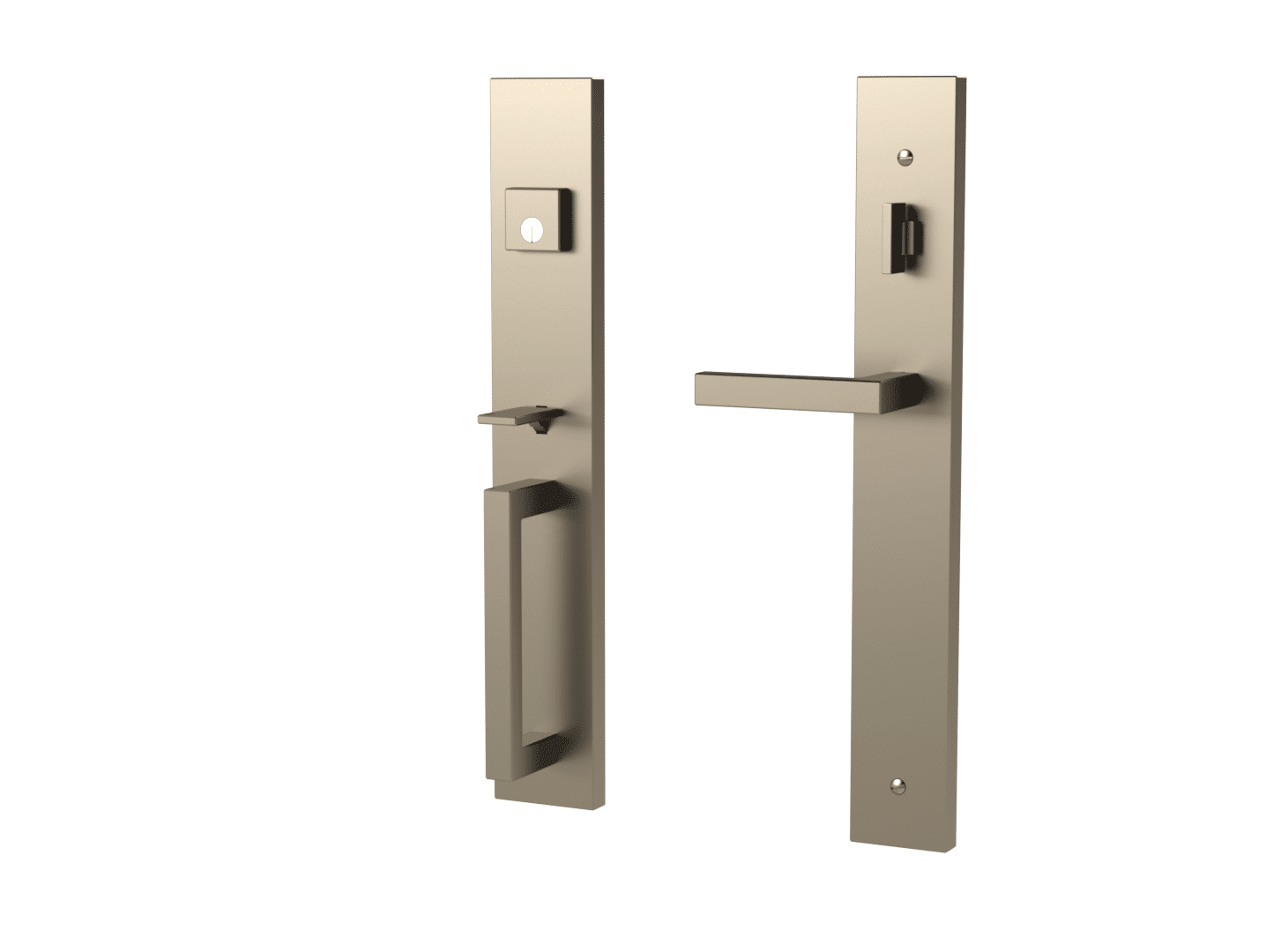

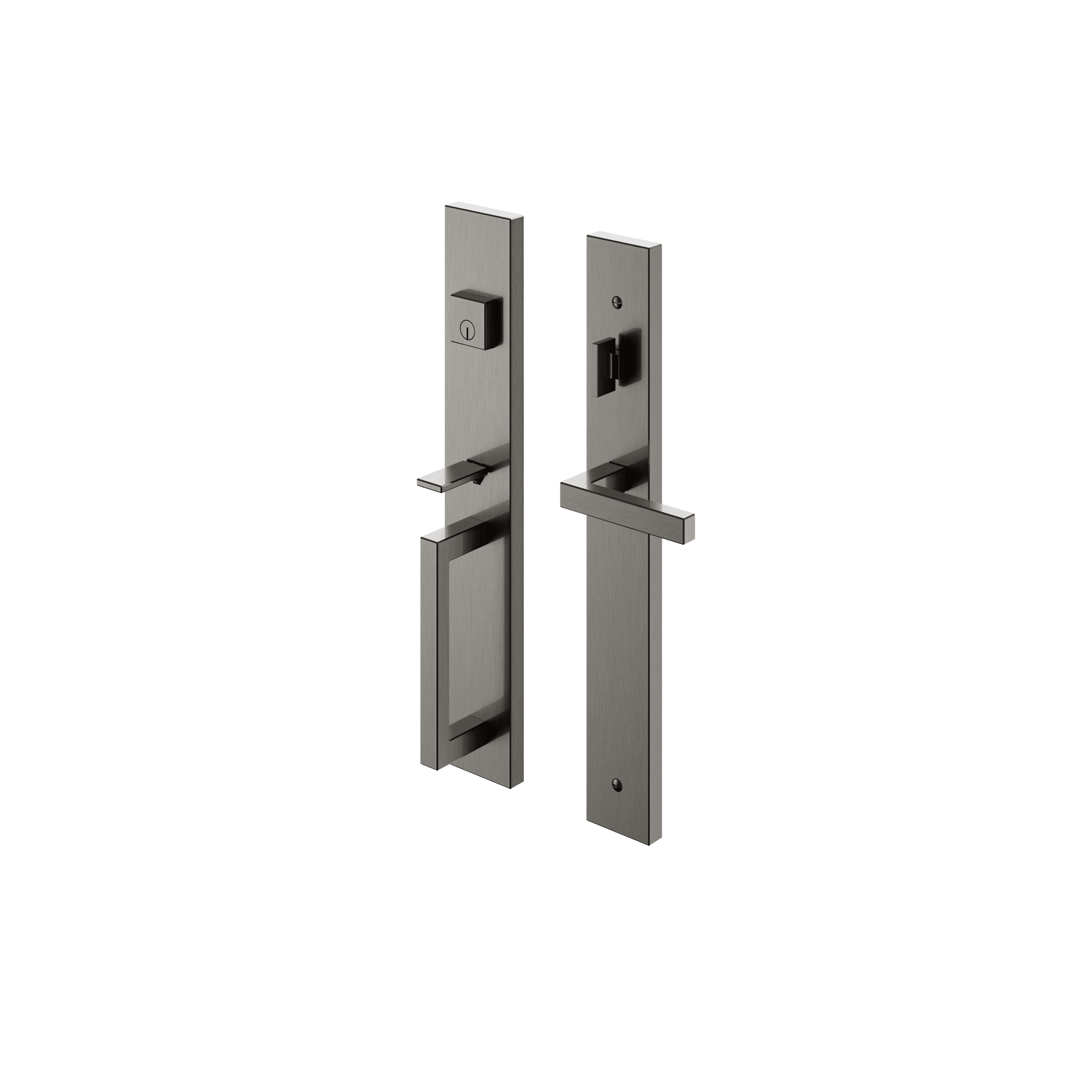

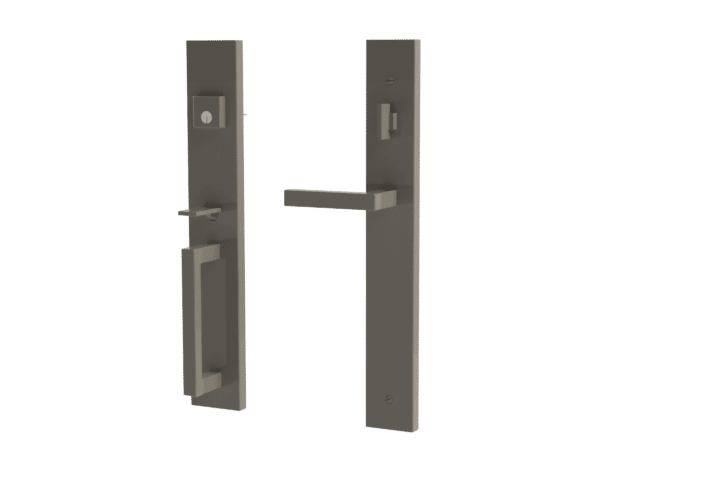

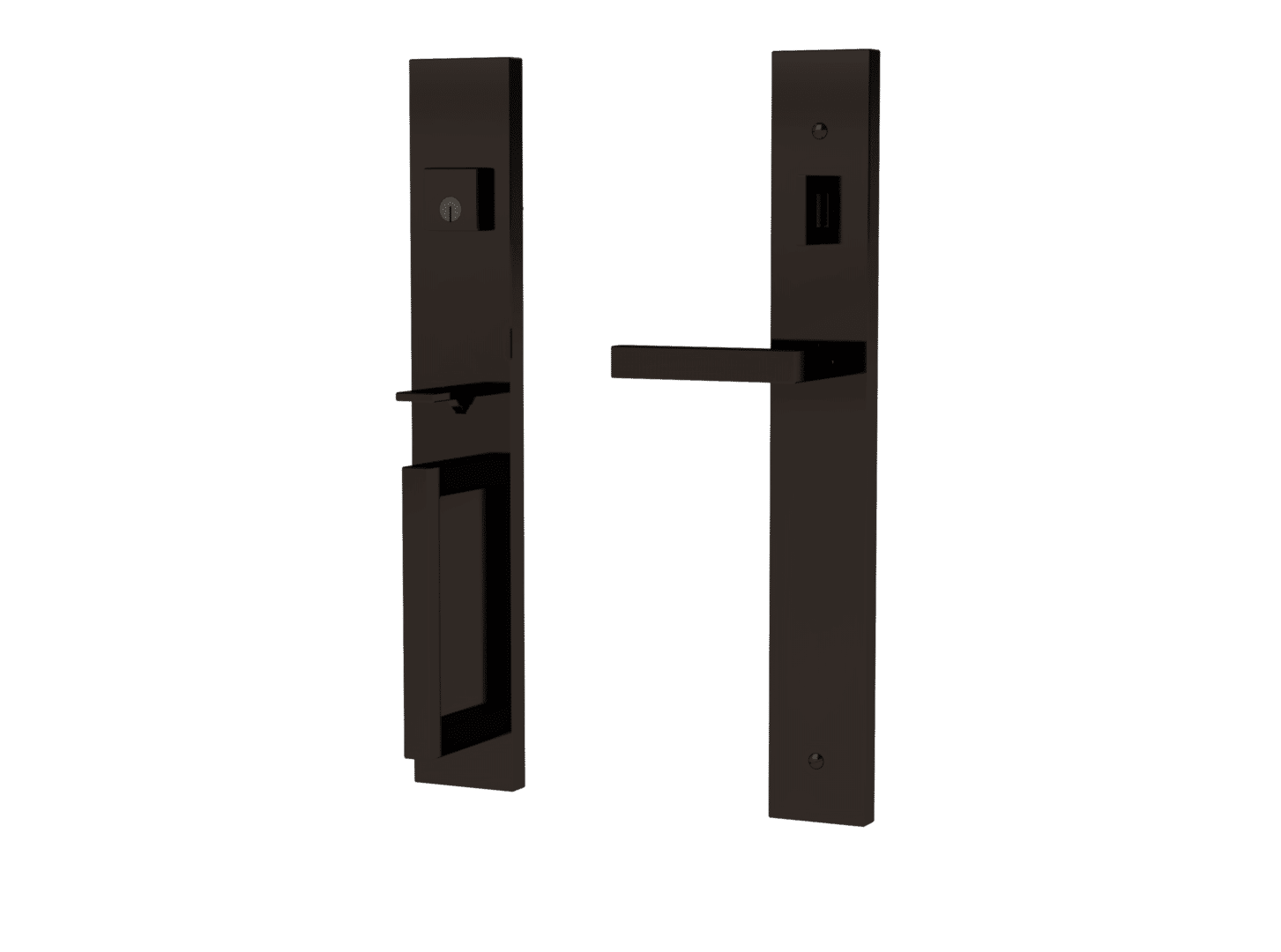

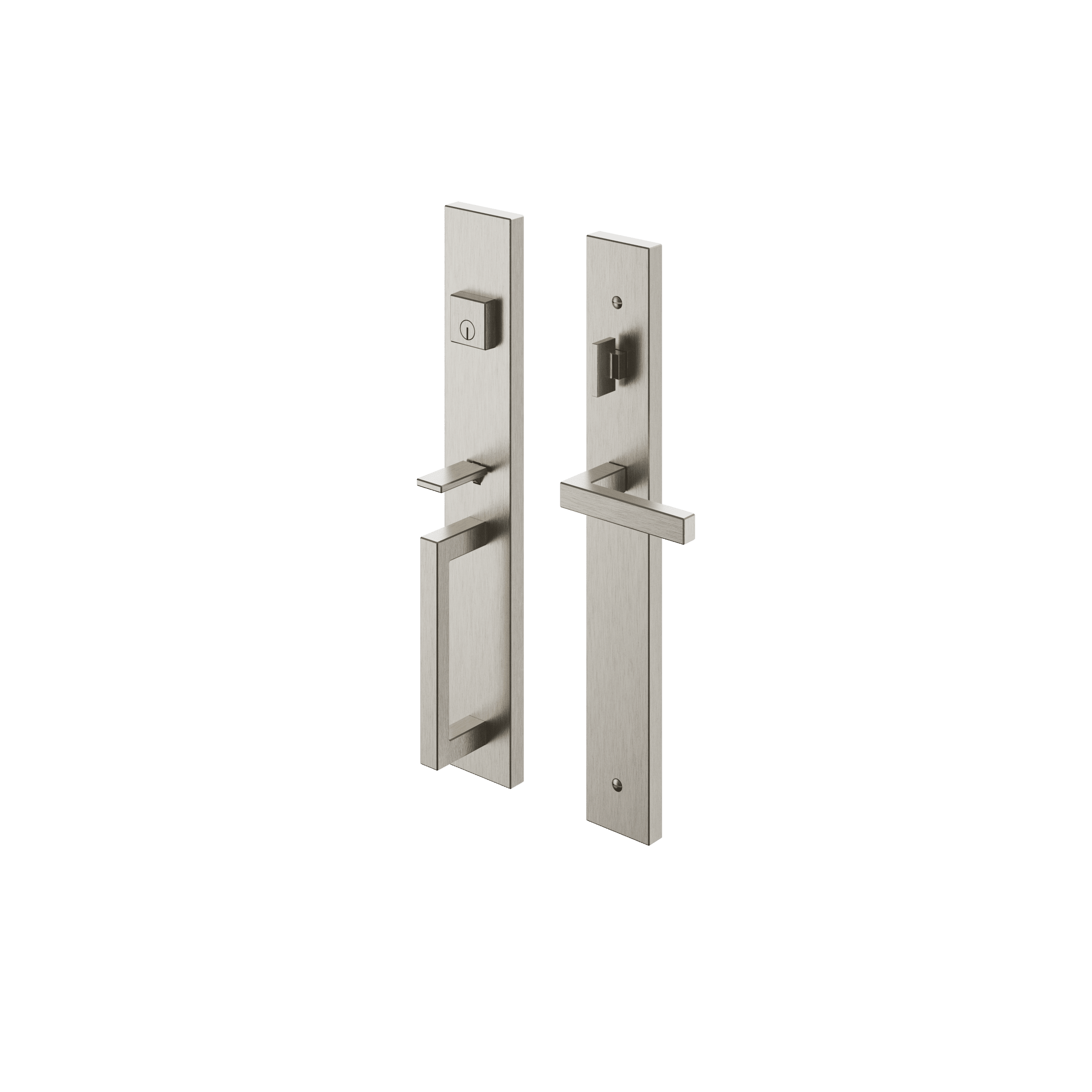

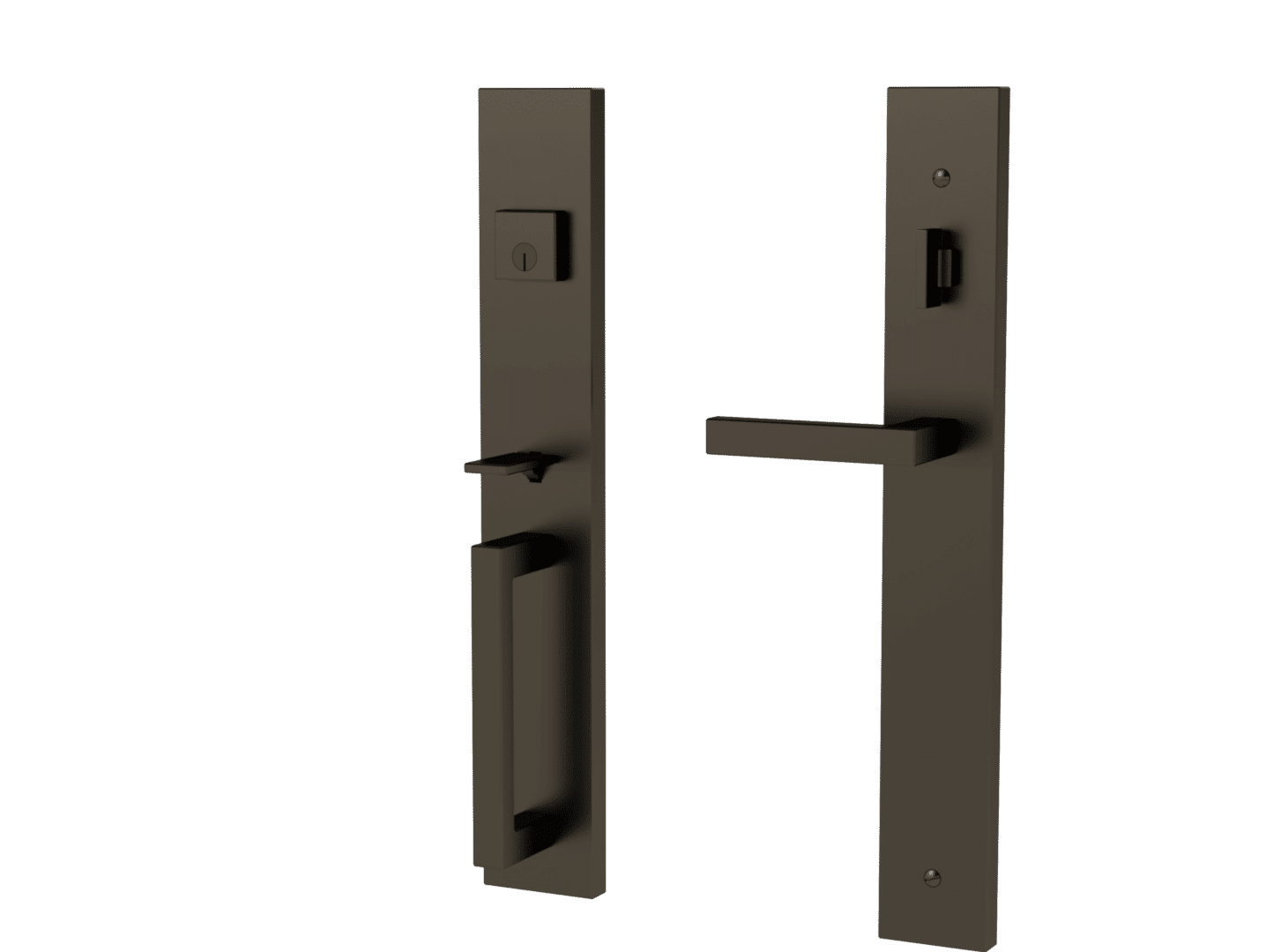

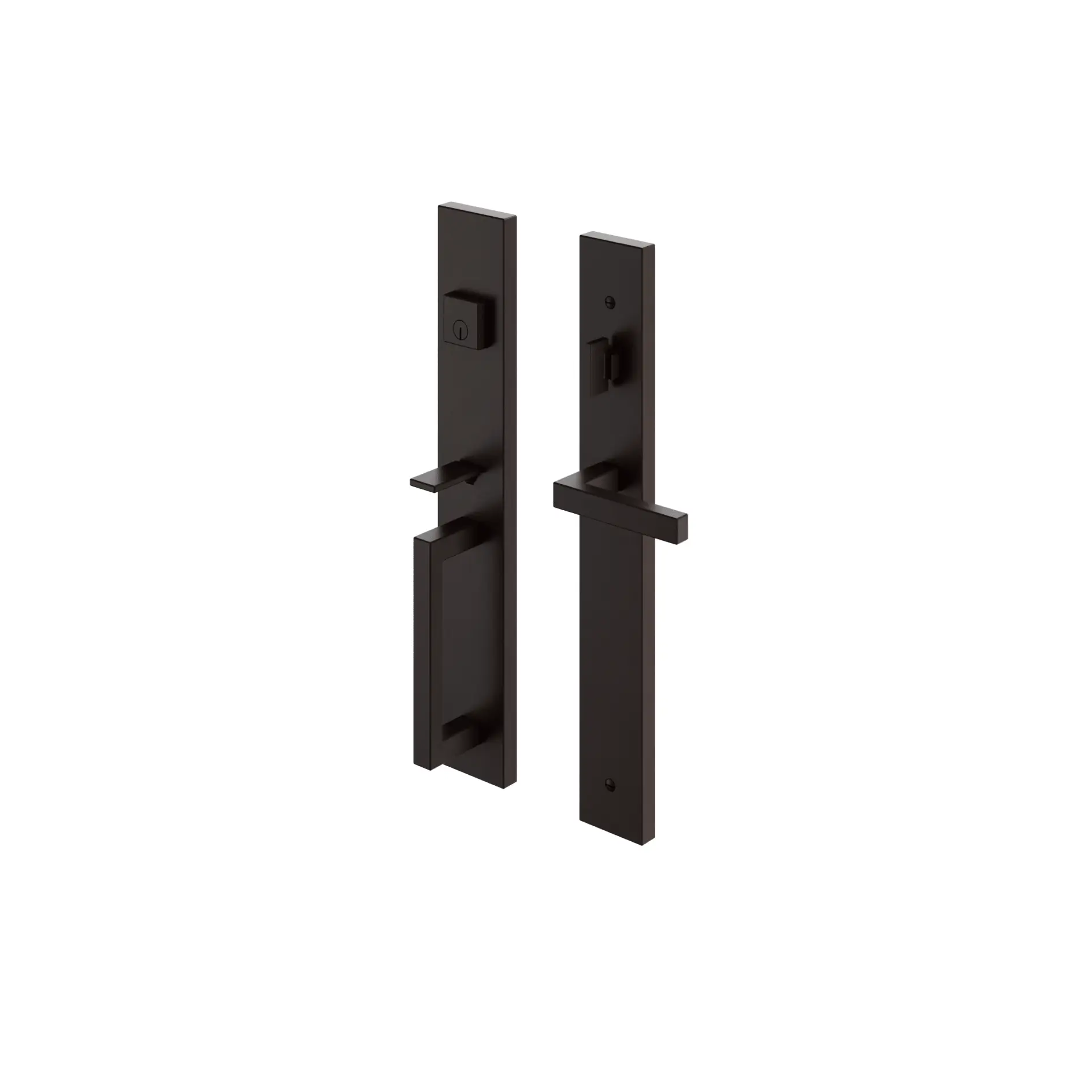

Berlin Gripset Handle
Handle sets with US-cylinder
- Solid forged brass
- US-cylinder with standard Schlage “C” keyway
- New snapping mechanism for the 90 deg locking with thumb-turn
- Improved springload mechanism for interior lever handle
- Non-handed
- Easy to install
- Weather proof gasket
- Stainless steel set screw on interior lever to secure handle
- Easily converts to inactive handle, using dummy conversion kit K-0971-00-0-*
- For 1 3/4″ thick doors
- For 2 1/4″ thick doors, use actuator conversion kit K-C2054-57-0-0
- Use with SECURY Automatic gears:6-35185-01-R-8B and 6-35185-02-R-8B
- Compatible with Danalock V3 and Tedee smart locks
- Jig template available for handle hole cutout. See tools catalogue for details
Description
The Berlin Gripset Handle offers a combination of style and functionality, crafted from solid forged brass for durability and equipped with a US-cylinder featuring a standard Schlage “C” keyway. Designed for ease of use, it includes a new snapping mechanism for 90-degree locking with a thumb-turn and an improved spring-load mechanism for the interior lever handle. The handle is non-handed and easy to install, featuring a weatherproof gasket and a stainless steel set screw on the interior lever for added security.
This handle is compatible with doors 1 3/4″ thick or 2 1/4″ thick (with an actuator conversion kit). It easily converts to an inactive handle using the dummy conversion kit K-0971-00-0-*. The Berlin Gripset works seamlessly with SECURY Automatic gears (6-35185-01-R-8B and 6-35185-02-R-8B) and is compatible with Danalock V3 and Tedee smart locks. A jig template for the handle hole cutout is available in the tools catalogue for precise installation.
